RCI
Diesel
Fuel Purifier
Specifications
(Please be patient, page takes
a few seconds to load)
|
|
|
RCI Fuel
Purifier Applications:
|
|
.5
to 15 gal/min
|
Marine
Fuel Purifiers
|
|
40
to 400 gal/min
|
Portable
Fuel Purifiers
|
RCI Fuel
Purifier Accessories: |
|
RCI
Water Sensors |
|
|
Contact Us About RCI Purifiers!
|
|
|
RCI Water Sensor Kit
(back to top)
RCI
Water Sensors have been designed to operate when the RCI Fuel Purifier is in need of purging. A buzzer
followed by a red indicator light will come on when the water
level in the purifier reaches the sensor level. The buzzer will last 10
seconds. The light will stay on until the unit is purged.
|
|
|
RCI Water
Sensor Kit Includes:
-
Universal
Indicator
-
OEM
Interface Module
-
Water
Sensor
-
Mounting
Bracket
|
|
RCI Water
Sensors are available for most
RCI Diesel Fuel Purifier applications!
Contact Us About RCI Water
Sensors!
|
|
|

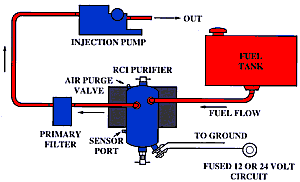

Recommended
Purifier
Installation
 |
RCI .5 to 15 GPM
Fuel
Purifiers cover a wide range of applications.
From small engines in the 150 horsepower or less range (0.5 GPM), up to 1000 horsepower diesel engines (15 GPM). |
|
| RCI
.5 to 15 gal/min Purification Systems
(back
to
top) |
| Model |
RCM
50-S |
RC
80-E |
RC
400-E |
RC
700-M |
RC
800-BE |
| Horsepower |
150
HP |
200
HP |
500
HP |
700
HP |
1000
HP |
| Flow |
.5
gal/min |
1.8
gal/min |
3.16
gal/min |
7.0
gal/min |
15
gal/min |
| Inlet/Outlet |
1/4"
NPT |
1/4"
NPT |
1/2"
NPT |
3/4"
NPT |
1"
NPT |
| Drain/Vent |
1/4"
NPT |
1/2"
NPT |
1/2"
NPT |
3/4"
NPT |
1/2"
NPT |
| Heated |
N/A |
12/24
Volt |
12/24
Volt |
12/24
Volt |
N/A |
| H2O
Sensor |
N/A |
1/8"
NPT |
1/8"
NPT |
1/8"
NPT |
1/8"
NPT |
| Drain
Valve |
1/4"
Brass
Ball
Valve |
1/2"
Brass
Ball
Valve |
1/2"
Brass
Ball
Valve |
1/2"
Brass
Ball
Valve |
1/2"
Brass
Ball
Valve |
| Height |
7" |
10.75" |
15" |
15" |
19.5" |
| Width |
2.75" |
3.75" |
4.5" |
4.5" |
4.5" |
| Weight |
2
lbs |
5
lbs |
11
lbs |
11
lbs |
13
lbs |
|
|
Contact Us About RCI .5 to 15
GPM Purifiers!
|
|
|
Recommended
Purifier
Installation
|
RCI 40 to 400 GPM
Fuel
Purifiers cover a wide range of applications.
Including diesel fuel pumping stations, fuel docks, diesel locomotives, aircraft fueling, very large pumping stations and super heavy duty mobile or stationary engines. |
|
| RCI 40 to 400 gal/min Purification Systems
(back
to
top) |
| Model |
RC
1000-P |
RC
1500-P |
RC
2000-SB |
RC
3000-SB |
RC
4000-R |
| Flow |
40
gal/min |
90
gal/min |
150
gal/min |
200
gal/min |
400
gal/min |
| Inlet/Outlet |
1"
NPT |
2"
NPT |
2"
NPT |
3"
NPT |
4"
NPT |
| Drain/Vent |
1"
NPT |
1"
NPT |
** |
** |
** |
| Heated |
N/A |
**
|
** |
** |
** |
| H2O
Sensor |
1/8"
NPT |
1/2"
NPT |
** |
** |
** |
| Drain
Valve |
1"
Brass
Ball
Valve |
1"
Brass
Ball
Valve |
** |
** |
** |
| Height |
30" |
36" |
** |
** |
** |
| Width |
6.8" |
6.8" |
** |
** |
** |
| Weight |
22
lbs |
41
lbs |
** |
** |
** |
|
**
Please contact us for more details on these high flow units.
Contact Us About RCI 40 to 400
GPM Purifiers!
|
|
|
|

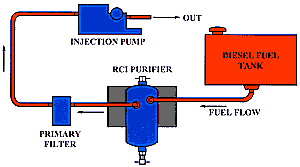

Recommended
Marine
Installation
 |
RCI Marine
Diesel
Fuel
Purifiers are corrosion resistant and perfect for a wide range of marine applications.
From small
engines in the 150 horsepower or less range (0.5 GPM), up to 1000 horsepower diesel engines (15 GPM). |
|
|
|
| Marine Purification Systems
(back
to
top) |
| Model |
RCM
50-S |
RCM
80-E |
RCM
400-E |
RCM
700-M |
RCM
800-BE |
| Horsepower |
150
HP |
200
HP |
500
HP |
700
HP |
1000
HP |
| Flow |
.5
gal/min |
1.8
gal/min |
3.16
gal/min |
7.0
gal/min |
15
gal/min |
| Inlet/Outlet |
1/4"
NPT |
1/4"
NPT |
1/2"
NPT |
3/4"
NPT |
1"
NPT |
| Drain/Vent |
1/4"
NPT |
1/2"
NPT |
1/2"
NPT |
1/2"
NPT |
1/2"
NPT |
| H2O
Sensor |
Available |
Available |
Available |
Available |
Available |
| Drain
Valve |
Brass |
Brass |
Brass |
Brass |
Brass |
| Purge
Valve |
Brass |
Brass |
Brass |
Brass |
Brass |
| Height |
7" |
10.75" |
15" |
15" |
19.5" |
| Width |
2.75" |
3.75" |
4.5" |
4.5" |
4.5" |
| Weight |
2
lbs |
5
lbs |
11
lbs |
12.5
lbs |
13
lbs |
|
NOTE:
All RCI Marine Diesel Fuel Purifiers are constructed of high quality steel
with powder coating, solid brass plugs and valves, and stainless steel mounting nuts, bolts and washers.
Contact Us About RCI Marine Purifiers!
|
|
|
RCI Portable
Fuel Purifiers for convenient water and contamination removal
when and where you need it!
|
| RCI
Portable Purification Systems (back to top) |
| OPERATING
FLOW
RATE |
18
gpm
(68
LPM) |
| MOTOR |
U.L
approved
-
Class
C
Fuels |
| PUMP |
Self
Priming
-
78
PSI
Max.
Operation |
| HOSES |
3/4"x
20'
Supply,
3/4"x12'
Return |
| RCI
UNIT |
RC
1000L
-
(SM)
Strap
Mounted |
| COMPLETED
HEIGHT |
Approximately
5'
6" |
| COMPLETED
WIDTH |
Approximately
23" |
| GROSS
WEIGHT |
Approximately
125
lbs |
|
IMPORTANT
NOTES: 1.)
Portable unit pump is not designed to remove "bulk" water (this could
lead to pump failure). An auxiliary pump is recommended for bulk water removal.
2.) GPM/LPM ratings are based
on ideal conditions. Filters, automatic nozzles, longer hoses, etc. may reduce flow rate. |
|
|
|
